How To Run a Mini Split Line Set Through an Exterior Wall

I install and service heat pump systems around Madison, WI, and the penetration through the wall is where I see the most preventable damage. This guide walks you through how to do it right.

Key Takeaways

A mini split line set usually goes through one hole in the outside wall that is 2.5" to 3" across, and you drill it with a slight downward pitch toward the outside so water can't get in.
Through a sleeve, the refrigerant lines, control wire and condensate drain should all run together, and the line set has to stay insulated the whole way with no bare copper showing, or you'll get condensation inside the wall.
You can handle layout, drilling, mounting line hide and sealing. But refrigerant work (flaring, vacuum, pressure testing, opening service valves) has to be done by an EPA-licensed tech.
On historic or high-visibility outside walls, drop the lines inside wall cavities or down to an unfinished basement, then exit on a less-visible side with paintable line hide for a clean look.

How This Guide Works (And What You Should Not DIY)

What you can do yourself: picking the route, measuring, drilling the wall penetration, mounting line hide and basic sealing and weatherproofing.

What has to be done by a licensed HVAC tech: handling refrigerant, pulling vacuum with a micron gauge, pressure testing with nitrogen, flaring and torqueing the refrigerant lines, and opening the outdoor unit service valves.

In Wisconsin, bad refrigerant work can void your manufacturer warranty and cost more to fix than the original install. Plan on bringing a pro back after you've got the penetration ready.

Planning the Line Set Route Through the Exterior Wall

Before anyone picks up a drill, you'll need to figure out your route. A mini split line set usually has insulated copper tubing and an electrical cable, specifically two refrigerant lines (on a Mitsubishi MSZ-FX 06–12K, that is 1/4" liquid and 3/8" gas. On the 15/18K, there is 1/4" liquid and 1/2" gas. On the 24K, 1/4" liquid and 5/8" gas), plus control wire and usually a condensate drain.

Start from the indoor unit mounting template. Find the manufacturer's recommended exit point, usually slightly right of center and below the backplate, and check clearances to studs, windows and anything outside that might be in the way.

Decide early whether the lines will drop straight out the back wall and down with exterior line hide, or turn and run inside a stud bay toward a basement or utility area before exiting on a less-visible wall. Think about future service access: you want the refrigerant connections to be easy to reach for maintenance. Do not run it where furniture, built-ins or tight soffits will block leak detection or replacement.

Stay within what the unit lets you do. Mitsubishi's MSZ-FX 06/09/12 can handle up to 65 ft of line and 40 ft of height difference. The FX 15/18/24 can handle 100 ft and 50 ft. Both have a maximum of 10 bends. Good insulation matters for mini split line efficiency across every foot of that run.

Choosing Interior vs. Exterior Line Set Routing

Keeping the line set outside in line hide is simpler and it stays drier. Running inside wall cavities can keep the look clean on older or historic outside walls, but it adds complexity.

There are fewer penetrations through plates and fire blocks
There's a higher risk of hidden condensation if the insulation spec isn't maintained (Mitsubishi's FX spec calls for foam that is 5/16" thick and heat-resistant on both lines)

Running lines inside walls is common in new construction where chases are planned. In retrofits, mini split lines are often run inside walls without PVC, but I'd still use a sleeve at every point where the line goes through something. For first-floor rooms over an unfinished basement in older Wisconsin homes, a hybrid route often balances appearance and how easy it is to service later. That's a short interior drop to basement, a long run in joist space, and an exit out the rear wall.

Marking and Drilling the Exterior Wall Penetration

Make sure the hole location is clear of framing, wiring and plumbing before you drill. Use a stud finder and, if you need to, cut an inspection hole to see what's behind the drywall.

You usually need a 2.5-inch to 3-inch hole for the line set. That is for both insulated refrigerant lines, control wire and drain. Don't drill it too big, because that makes sealing and keeping pests out harder. Some online advice says to drill three separate 1-inch holes for mini split lines, but one properly sleeved penetration is cleaner and easier to seal.

Drill the wall penetration with a slight downward pitch of about 5 to 15 degrees toward the outside so any moisture drains out instead of into the wall cavity. Be careful about draining paths so water can't get in during installation. Use a long pilot bit first, then follow with a hole saw sized for your sleeve.

On thick walls, like plaster, lath, sheathing and siding, you may need to drill from both sides to avoid tear-out. Use the pilot hole as your guide. For masonry or stone veneer, use a masonry core bit and think about offsetting the hole so you do not hit a mortar joint that could crumble.

Use a tubing bender so you do not kink the copper refrigerant lines as they make the turn through the wall. Kinking or sharply bending copper tubing can restrict refrigerant flow and damage the system.

Protecting and Sealing the Wall Penetration

Insert a plastic wall sleeve through the hole to protect the insulation and wiring. A sleeve is recommended as it creates a clean, protected passage for the lines and makes future replacement easier. Cut it slightly longer than wall thickness so lines do not rub on raw wood or masonry.

Use low-expansion foam around the sleeve on the interior side. Seal the wall penetration with expanding foam or exterior-grade caulk to block drafts and moisture
Use compatible exterior-rated sealant to seal the outside part of the sleeve against weather, and tie it in with housewrap or siding
You can add an escutcheon or hood to shed water at the exterior opening

Check the slope with a small level after foaming. Expanding foam can push the sleeve out of alignment. Don't use high-expansion foam that bows drywall, and do not overfill so that future line service means chiseling everything out. Check the sealant and insulation periodically for cracking or separation, especially after Wisconsin's freeze-thaw cycles.

Routing Lines, Drain and Wire Through the Wall

This is the handoff zone between your prep work and the refrigerant work your HVAC installer handles. Focus on keeping the bundle smooth, supported and insulated the whole way.

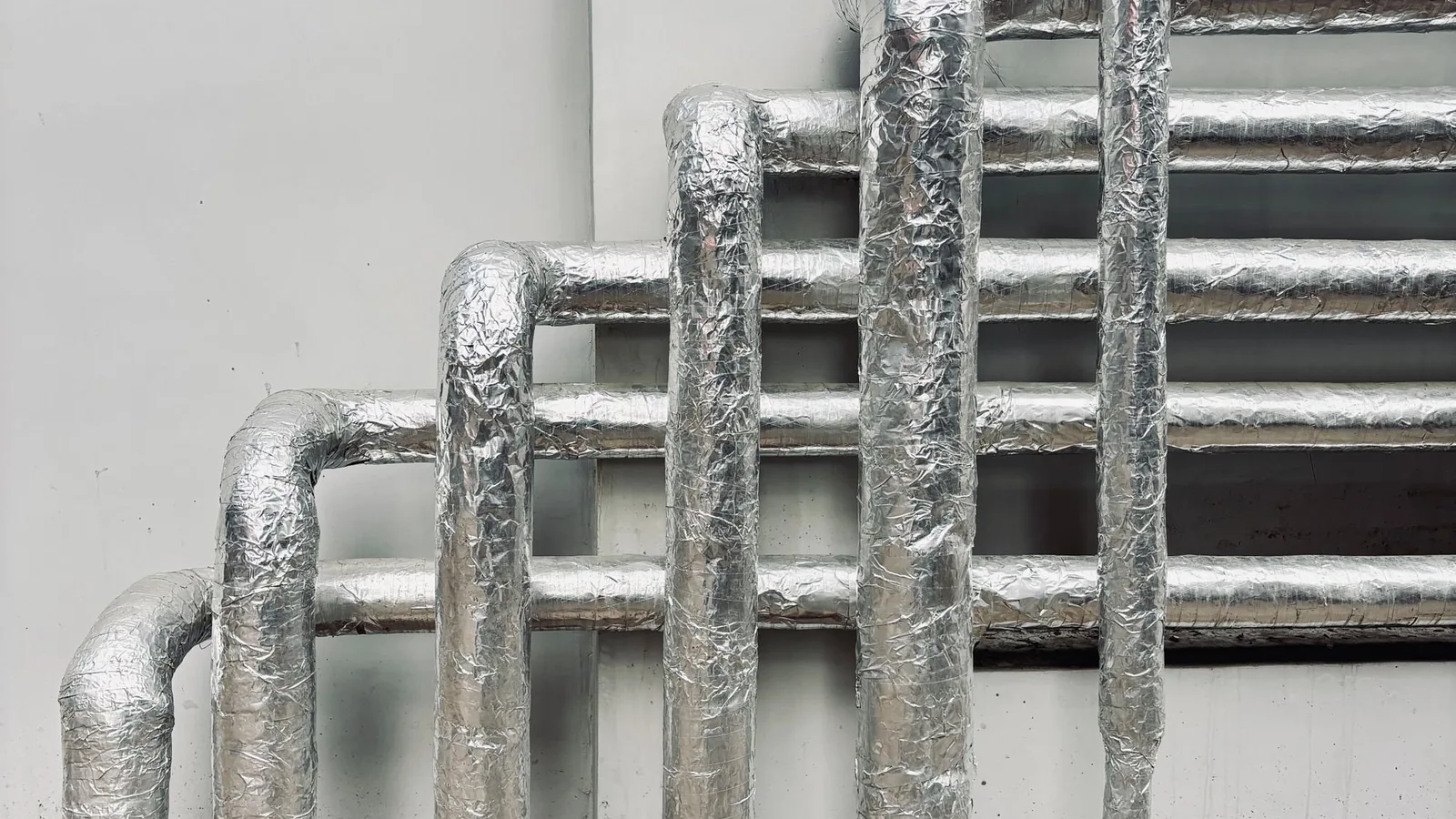

The refrigerant lines should be pre-insulated to manufacturer spec. Make sure foam insulation on lines doesn't get damaged during installation. Even small gaps in foam insulation can cause condensation. Foam insulation prevents condensation on mini split lines, and insulated lines should be fully sealed to avoid moisture issues. Insulate mini split lines to prevent condensation issues through the entire run, with no bare copper inside the wall.

Bends have to be gentle. Both Mitsubishi and Daikin need you to keep total bends within their published maximums, and manufacturers want flare centers aligned and flare nuts started 3–4 turns by hand before they're finished with a torque wrench.

The control wire should be rated for outdoor use when it is outside the wall, strapped to the line set bundle at regular intervals, and kept clear of sharp edges through the sleeve.

Using Line Hide on the Outside Wall

Line hide, also called slim duct, is a UV-resistant channel and cover that protects and hides the line set on the outside of the exterior wall. Install a decorative line set cover to shield the insulated tubing from weather and protect the insulation from UV exposure so it does not deteriorate.

Pick a line hide size that fits two insulated pipes, control wire and the drain tube without crushing them. Reducers, elbows and flat 90s handle corners and soffit transitions.

Mount the base to siding or masonry with corrosion-resistant screws into solid backing, keeping runs plumb from the penetration down to grade or over to the outdoor unit. Route the bundle gently, with no tight bends at fittings, then snap the cover and seal the top with exterior caulk or a manufacturer-provided hood.

Older and Historic Home Walls

Many homes in the Madison area (1850s farmhouses through 1920s foursquares) have 2×4 exterior walls with plaster, lath and retrofitted fiberglass or cellulose insulation. These walls are vulnerable.

Dropping a line set inside a stud cavity risks disturbing that insulation: settling fiberglass creates gaps that allow convection loops, and condensation can form on cold spots near the refrigerant lines. If you do use the stud bay, limit it to short first-floor runs down to a basement, keep insulation continuous and sleeve the penetration through the top plate.

To minimize damage to interior finishes, think about strategic cuts at baseboard height, using existing chases or closets, or running surface-mounted conduit inside to keep the wall cavity intact. If preserving the front facade is the goal, it's basically always better to accept a more complex interior/basement route and a clean back-wall exit than to pepper the front with exposed refrigerant lines and fittings. I know this takes more planning, but the research you do now saves real cost later.

What Happens After the Line Set Is In: Testing, Evacuation and Commissioning

Once you've got the line set routed and the opening sealed, the rest is for your HVAC installer. But you should understand what happens so you know what to look for.

The tech will connect the refrigerant lines with properly torqued flares, pressure test with dry nitrogen to check for any leak, then pull a deep vacuum using a micron gauge-not just letting the pump run for 15 minutes. After vacuum holds, the tech will open the outdoor unit (condenser/compressor) service valves to release refrigerant into the system.

A good tech will also confirm heating performance against manufacturer tables. In our climate, that matters. Proper installation is key to realizing the energy savings that make mini splits attractive even at 2026 Alliant Energy Rg-1 rates-$0.17011 per kWh plus a $0.5260/day customer charge. And with Focus on Energy's 2026 instant discounts running $400 to $700 for qualifying air-source heat pump systems (income-qualified households get $600–$900), you do not want to leave efficiency on the table because of a sloppy line set run.

Mini Split Line Sets Through Walls FAQ

Can Two Mini Split Heads Share One Wall Hole?

In my opinion, each wall-mounted indoor unit should get its own penetration. Combining two bundles means an oversized hole that weakens the top plate, complicates condensate drain slope for each unit, and makes future service a nightmare. Keep them separate.

Can Refrigerant Lines Be Bare Copper Inside Walls?

No. Bare suction copper inside a wall cavity will literally sweat when it is running in cooling mode, soaking your insulation and framing. The entire line inside conditioned or semi-conditioned spaces has to be wrapped with at least the manufacturer's minimum insulation thickness. Don't worry about over-insulating. Worry about gaps.

Can I run the line set straight up into an attic instead of out through the wall?

It's sometimes done, but attic temperatures in summer can be extreme, and you'll probably use more line length and bends. Only do it when the manufacturer's length and elevation limits are respected. The evaporator and indoor unit connections still need to be easy to reach. The lines need serious insulation and protection from physical damage up there.

Does Line Hide Have to Be Used Outside?

Code may not always require it, but I strongly recommend it. Exposed insulation breaks down fast from UV, hail and even weed trimmers. That deterioration leads to sweating, efficiency loss and an ugly look on your house. A paintable line hide fixes all of that for a modest cost and saves you from having to replace degraded insulation later.

Is Rerouting Lines Later a Big Deal?

Yes. Moving a line set once walls and finishes are closed means new holes, patching, re-flaring, re-vacuuming and re-commissioning the whole system. It's expensive and disruptive. Spend the extra planning time now. Figure out the right route, find the right wall and save yourself from paying twice.
